RADIO RIG ICOM IC 2300H ORIGINAL GARANSI RESMI

Merek: Icom | Lihat selengkapnya produk Audio Player dari merek Icom
    • frekuensi 136_174mhz
    • daya pancar 60watt
Sementara kehabisan stok
Rp3.570.000
Lihat tempat menjual
Dijual oleh: ZIZAN_STORE Lihat selengkapnya produk Audio Player dijual oleh ZIZAN_STORE
  • Tersedia di DKI Jakarta
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Garansi 1 Tahun
  • 14 hari pengembalian barang
  • Dukung pembuatan faktur
Deskripsi Produk Apa yang termasuk? Spesifikasi

Detail produk dari RADIO RIG ICOM IC 2300H ORIGINAL GARANSI RESMI

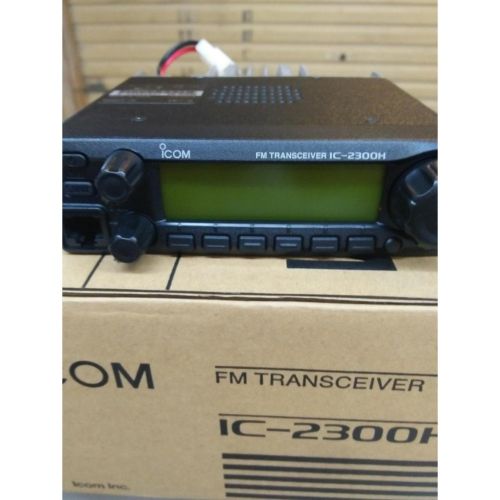

radio mobil icom 2300h
frekuensi 136_174mhz
daya pancar 60watt

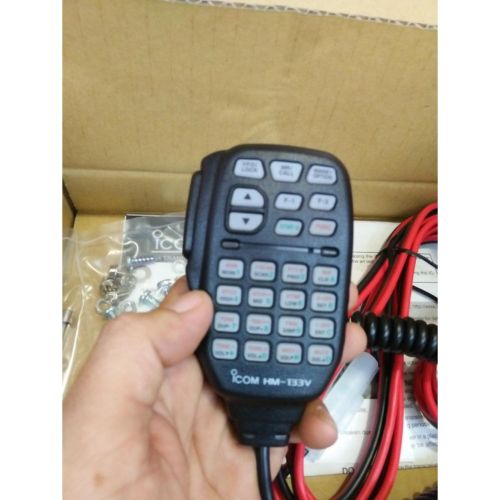

mic hm 133 ori
garansi resmi
Frequency coverage TX: 144148MHz,
RX: 136174MHz*
Number of channels 207 channels
(including 6 scan edges, and 1 call)
Type of emission F2D, F3E (FM)
Power supply requirement 13.8V DC 15%
Current drain Tx (65W) 11A
Rx Stand-by 0.4A
Max. audio 1.5A
Antenna impedance 50 (SO-239)
Operating temperature range 10C to +60C; 14F to +140F
Dimensions
(projections not included; WHD) mm;
n
Weight (approx.) 1.1 kg; 2.43lb
* Guaranteed range TX/RX: 144148MHz
Transmitter
Output power* (at 13.8V DC) 65W, 25W, 10W, 5W
Max. frequency deviation Wide 5.0kHz
Narrow 2.5kHz
Spurious emissions Less than 60dBc
Frequency stability 3ppm
Microphone impedance 600 (8-pin modular)
* Output power differs depending on version and specific regulatory requirements.
Receiver
Intermediate frequencies 46.35MHz/450kHz
Sensitivity at 12dB SINAD Less than 0.18V
Adjacent channel
selectivity Wide More than 6kHz (at 6dB)
Less than 14kHz (at 60dB)
Narrow More than 3kHz (at 6dB)
Less than 9kHz (at 55dB)
Spurious response rejection More than 60dB
Audio output power 4.5W typ. (10% dist. 4 load)
External speaker connector 2-conductor 3.5 (d) mm (18)/4
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Apa yang ada di dalam kotak

1 unit RADIO RIG ICOM IC 2300H ORIGINAL

Spesifikasi lengkap produk

Merek: Icom
SKU: IC049ELABFIK7QANID-117514119
Jenis Garansi: Garansi Lokal
Model: RADIO RIG ICOM IC 2300H ORIGINAL
Masa Garansi: 1 Tahun
