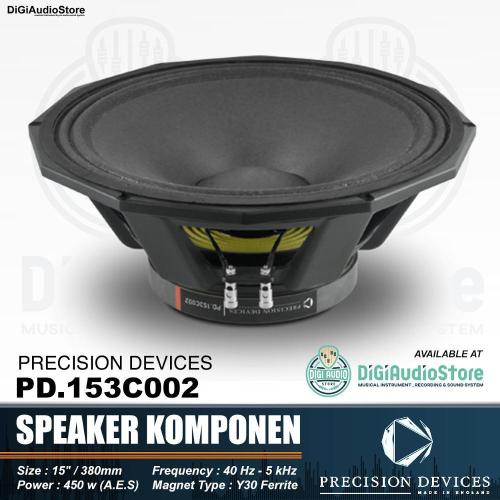

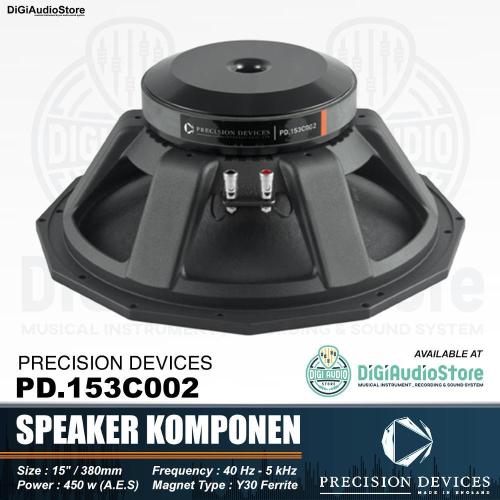

Precision Devices PD.153C002 Speaker Komponen Pasif Sound System 15 inch 450 Watt

SPECIFICATIONS
Nominal Diameter 15" / 381 mm
Nominal Impedance 4 / 8 / 16
Voice Coil Diameter 3.0" / 76.2 mm
Power Rating 450 W (A.E.S.)
Peak Power (6dB Crest Factor) 1800 W (A.E.S.)
Sensitivity (1w / 1m) 101 dB
Frequency Range 40 Hz - 5 kHz
Recommended Enclosure Volume 40 - 80 Litres
Voice Coil Winding Depth 0.73" / 18.50 mm
Magnet Gap Depth 10.00 mm / 0.39"
Flux Density 1.20 Tesla
Magnet Material Y30 Ferrite
Magnet Weight 3.30 Kg / 116.40 oz
Voice Coil Material Copper Clad Aluminium
Former Material Kapton
Dust Dome Material Paper
Suspension Material Fabric
Cone Surround Material Fabric
THIELE SMALL PARAMETERS
Fs 38 Hz
Re 5.6
Qms 4.030
Qes 0.265
Qts 0.249
Le @1k 1.280 mH
Le @10k 0.128 mH
Vas 263 Litres
Mms 67.14 g
Sd 853 cm2
Cms 254.40 m/N
BL 18.90 T/m
Xmax 6.75 mm
Vd 0.570 Litres
Reference Efficiency 5.46 %
EBP 143.40 Hz
MOUNTING AND SHIPPING INFORMATION
Overall Diameter 408.30 mm
Width Across Flats 395 mm
Flange Height 11.00 mm
Depth 152.70 mm
Magnet Diameter 200 mm
Chassis Shoulder Diameter 354.20 mm
Outer Bolt Circle x6 M8 on 394 mm PCD
Inner Bolt Circle N/A
Nett Weight 10.85 Kg / 23.92 lb
Shipping Weight 11.35 Kg / 25.02 lb
