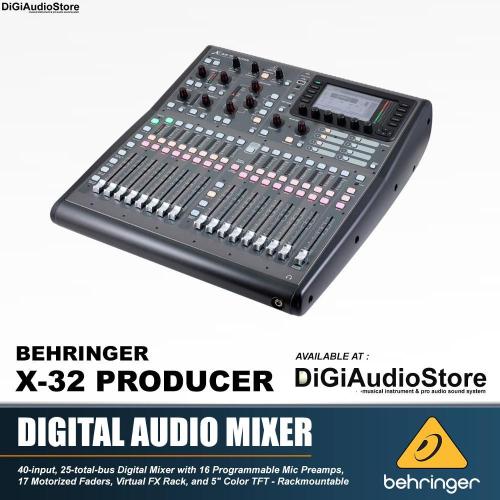

Behringer X32 Producer Digital Mixer Audio

Total # Of Inputs 32
Mic/Line Inputs 24 - XLR Microphone
32 - 1/4" TRS Phone Line
Stereo Line Inputs 4 - 1/4" TRS Stereo Line
In-Line Inputs/Returns No
AUX Sends 2 AUX Sends - 1/4" TRS Phone
2 FX Sends - 1/4" TRS Phone
AUX Returns 2 AUX Returns - L/R 1/4" TRS Phone
Inserts 24 - 1/4" TRS Phone (mono inputs)
2 - 1/4" TRS Phone (main output)
BUS (Group) Outputs 4 - 1/4" TRS Phone
2 Trk Master I/O Main Out - Stereo L/R 3-pin XLR
Main Out - Stereo L/R 1/4" TRS Phone
Mono Out - 1/4" Phone
Phono/CTRL Room - Stereo Single 1/4" TRS Phone
ALT I/O Foot Switch - 1/4" Phone
Monitor Outputs Phono/CTRL Room - Stereo Single 1/4" TRS Phone
EQ Section Mono Channels
Low - 80Hz +/- 15dB
Mid - 100Hz to 8kHz +/- 15dB
High - 12kHz +/- 15dB
Low Cut - 80Hz, 18dB/oct.
Stereo Channels
Low - 80Hz +/- 15dB
Low Mid - 400Hz +/- 15dB
High Mid - 3kHz +/- 15dB
High - 12kHz +/- 15dB
Solo/Mute SOLO / PFL MUTE
Channel Level Control Fader
Trim/Gain Control Rotary Pots
Phantom Power +48V Phantom Power
Metering Peak LEDs
Frequency Response < 10Hz - 70kHz +0dB / -1dB
< 10Hz - 130kHz +0dB / -3dB
Dynamic Range Not Specified By Manufacturer
Signal-to-Noise Ratio 110dB / 112dB A-weighted
Total Harmonic Distortion (THD) 0.004% / 0.003% A-weighted
Power Supply Power Consumption 50W
Fuse (100 - 240V~, 50/60Hz) T 2.0 A H 250V
Standard IEC Receptacle
Dimensions (WxHxD) 3.9 x 35.3 x 16.1" (100 x 896 x 410mm)
